Monitor Is Introducing It’s Newest Product Line

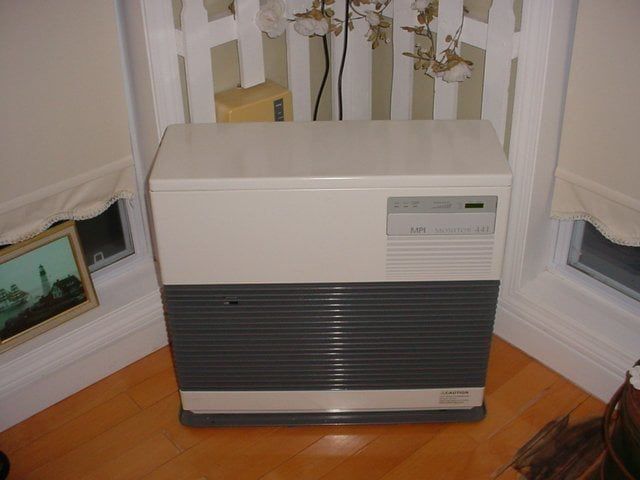

Monitor Products uses technology to save you money. Monitor kerosene/#1 oil heaters and LP or natural gas heaters have been keeping hundred of thousands of homes warm for over 20 years. From Alaska to Florida, from Nova Scotia to San Francisco, people are saving money on their heating bills, thanks to Monitor’s heaters. Monitor’s latest highly-efficient product is the MHP series of Heat Pumps, which will keep you cool in the summer and warm in the winter.


MHP Series - High efficiency

Single – Zone Heat-Pump

Heat pumps are not just an alternative to other heating methods. Heat pumps can cool your house or building as well! They can be a more cost effective way to heat compared to oil, kerosene, gas, or resistive electric heating and also more cost effective in cooling compared to central air systems or through-the-wall or window mounted air-conditioners.

Heat pumps can also work with your current heating and cooling system to condition the basement, the attic, an add-on to the house, or anywhere your current system doesn’t cover.

Individually control each room to your comfort level – let each family member enjoy their own comfort level – don’t waste energy heating and cooling every room!

With SEER ratings as high as 19.2, our heat pumps exceed Energy Star standards.


Make Your Life Easier

  • Virtually no maintenance required

  • all you have to do is clean the filter!

  • No tanks to install or fill – monthly electric bills are easier than one seasonal fill-up.

  • Heat pumps can be effortlessly operated by remote control.

  • Available as a single zone system units of

  • 12k, 18k and 24k Btu.

Quieter operation:

Comfort:

Convenient:

Environmentally friendly:

Energy Savings:



Heat Pump

Indoor model

Single -Zone

MHP-S12MA-IN

MHP-S18MA-IN

MHP-S24MA-IN

Outdoor Model

MHP-S12MA-EX

MHP-S18MA-EX

MHP-S24MA-EX

Capacity

Cooling Capacity

Btu/h

12000

18300

24000

Heating Capacity

Btu/h

13000

19200

25400

Electrical Parts

Power Supply

V~,Hz,Ph

115V,60Hz,1Ph

230V,60Hz,1Ph

230V,60Hz,1Ph

Power Input (W)

Cooling

950

1460

2100

Heating

1330

1480

2050

Operating Current (A)

Cooling

9.6

6.7

9.1

Heating

13.5

6.6

8.9

Rated Current (A)

Cooling

13.5

9.3

12

Heating

13.5

9.3

12

Performance

SEER

Btu/h/W

19

19.2

18

EER

Btu/h/W

12.5

12.5

12.5

Energy Star



YES

YES

YES

Air Flow Volume

Indoor (m3/h)/cfm

800 / 470.80

1150 / 676.78

1600 / 941.60

Noise Level (dB(A))

Indoor (Hi/Med/Low)

40/38/35

48/40/36

50/48/46

Outdoor

53

54

59

Dimension & Weight

Net Dimension (mm)

Indoor (W*H*D)

920x292x223

998x322x240

1445x340x277

in

36 1/4x 11 1/2x 8 3/4

39 5/16x 12 11/16x 9 7/16

56 7/8x 13 3/8x 10 7/8

Outdoor (W*H*D)

760x590x285

845x695x335

895x860x330

in

29 15/16×23 4/16×11 4/16

33 4/16×27 6/16×13 3/16

35 4/16×33 14/16x 13

Net Weight(kg)

Indoor/Outdoor

11.5 / 37.5

13 / 47.5

26 / 72

lb

26/83

29/105

58/159

Packing Dimension (mm)

Indoor (W*H*D)

1015x368x295

1080x320x400

1530x365x420

Packing Dimension (inch)

in

39 15/16 x 14 1/2x 11 5/8

42 1/2x 12 5/8 x 15 3/4

60 1/4 x 14 3/8 16 9/16



Outdoor (W*H*D)

887x655x355

965x755x395

1043x915x395

in

34 15/16×25 13/16×14

38 x29 12/16×15 9/16

41 1/16×36 x15 9/16

Gross Weight (kg)

Indoor/Outdoor

14.5/40

17/51

32/76

Gross Weight (lb)

lb

32/88

64/113

71/168

Piping Size (mm)

Liquid

6.35(1/4″)

9.53(3/8″)

9.53(3/8″)

Gas

12.7(1/2″)

16(5/8″)

16(5/8″)
